External Halyard Truck Assemblies
An external halyard truck sits at the top of the flagpole and carries the rope (halyard) that raises and lowers the flag. We carry Concord American Flagpole trucks for every external halyard pole, from cap style stationary trucks to heavy-duty revolving trucks and cast ball trucks, plus Eder Flag replacement rope pulleys. Every truck accepts a ball, eagle, cross or Texas star on top.
Which External Halyard Truck Do I Need?

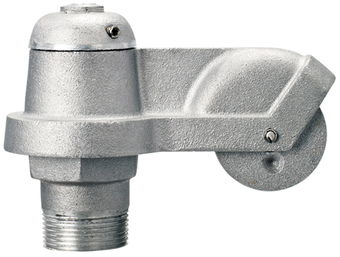

- Cap Style Single Stationary – How it mounts: Slips over the pole top, held by set screws or bolts; Rotates with the wind?: No; Fits pole tops: 1-7/8" to 5-1/2"
- Cap Style Single Revolving – How it mounts: Slips over the pole top, held by set screws; Rotates with the wind?: Yes; Fits pole tops: 1-7/8" to 3"

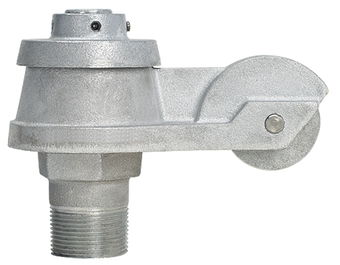

- In-Line Single Revolving – How it mounts: 1-1/4" NPT spindle; Rotates with the wind?: Yes; Fits pole tops: 4"

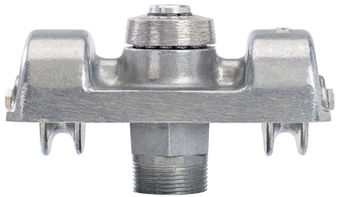

- Double Revolving (two flags) – How it mounts: 1-1/4" NPT spindle; Rotates with the wind?: Yes; Fits pole tops: 4"
- Heavy-Duty Single Revolving – How it mounts: 1-1/4" NPT spindle; Rotates with the wind?: Yes; Fits pole tops: 4-1/2" and 7-1/2"

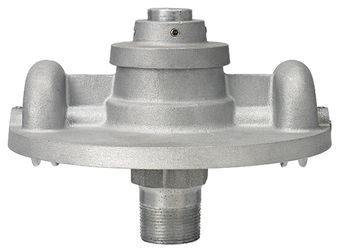

- Heavy-Duty Double Revolving – How it mounts: 1-1/4" NPT spindle; Rotates with the wind?: Yes; Fits pole tops: 5-1/2" and 9"

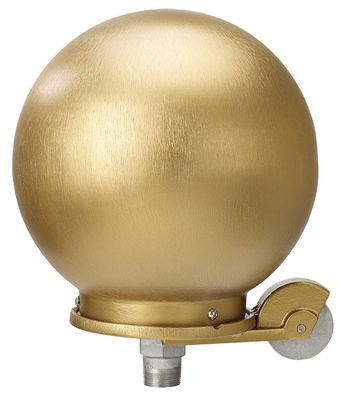

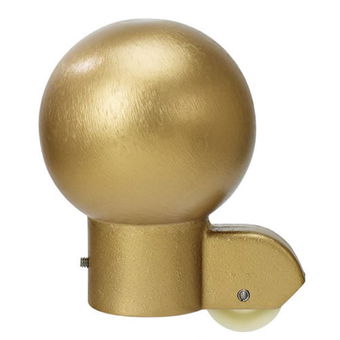

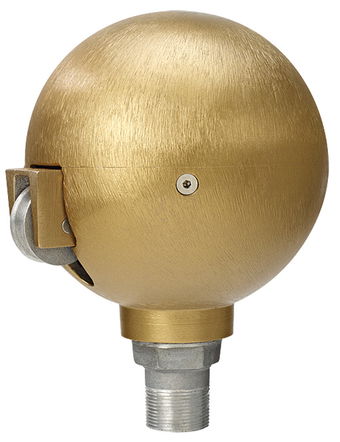

- Cast Ball Trucks (8", 10", 12") – How it mounts: 1-1/4" NPT spindle; the truck and ball are one piece; Rotates with the wind?: Yes; Fits pole tops: 4-1/2" and up
How to Choose
- Cap or spindle: cap style trucks fit over the top of the pole. Spindle trucks thread into a fitting welded into the pole top; the standard spindle thread is 1-1/4" NPT, with 1" and 1-1/2" NPT available on request.
- Stationary or revolving: a stationary truck stays fixed. A revolving truck turns with the wind, which keeps the flag from wrapping around the pole. A cap style revolving truck can convert a stationary pole to revolving.
- Pole top size: measure the outside diameter at the very top of your flagpole.
- Ornament thread: most trucks are drilled 1/2"-13NC for the ornament, with 5/8"-11NC available. A thread adapter can convert between the two.

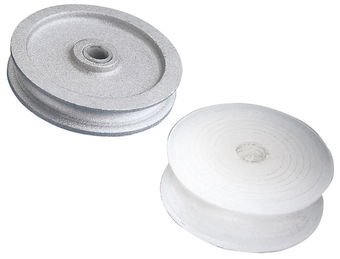

- Halyard size: standard trucks take a 5/16" rope; heavy-duty trucks take 3/8". Worn pulley? See our replacement rope pulleys.
Need Help Finding the Right Truck?
Send us a photo of your flagpole top and the old truck, and we will match it. If you do not see the truck you need, we can find it for you. Call 877-598-3524 or email sales@ameritexflags.com.
