Product Description

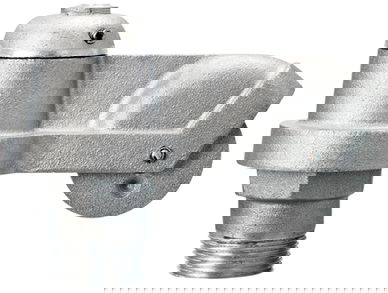

External Halyard In-Line Single Revolving Truck - TRK-9610
The Concord American Flagpole TRK-9610 is an in-line revolving truck for external halyard flagpoles with a 4" pole top. It threads into the fitting at the top of the pole on a spindle and turns with the wind on sealed upper and lower ball bearings, so the flag flies freely. The top is drilled to accept a ball, eagle or other ornament.
Features
- In-line cast aluminum body
- Clears 4" diameter pole tops
- Single aluminum pulley on a stainless steel axle
- Upper and lower stainless steel ball bearing assemblies

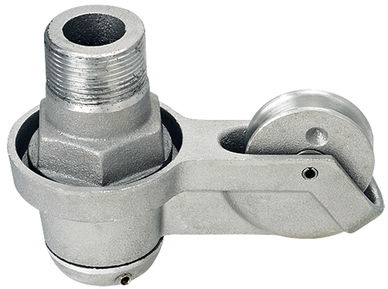

- 1-1/4" NPT spindle standard; 1-1/2" NPT and stainless steel spindles available

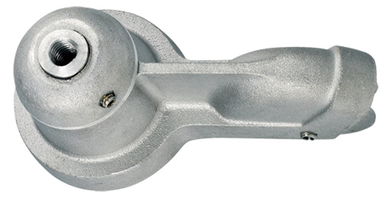

- 1/2"-13NC top drilling for your ornament
- Recommended halyard diameter: 5/16"
Options and Part Numbers
- 1-1/4" NPT cast aluminum (standard) – Satin finish: TRK-9610; Powder coat: TRK-9610-***
- 1-1/2" NPT cast aluminum – Satin finish: TRK-9610; Powder coat: TRK-9610-***
- 1-1/4" NPT stainless steel – Satin finish: TRK-9610SS; Powder coat: TRK-9610SS-***
*** = powder coat color: BZT (BronzeTone), BLK (Black), WHT (White) or CLR (Clear). Powder coated trucks may take longer to ship. A 1" NPT spindle is available on request.
How to measure: check the outside diameter of your pole top and the thread size of the fitting in the top of the pole. Not sure which spindle you have? Call 877-598-3524 or email sales@ameritexflags.com. See all external halyard truck assemblies.
Product Videos
Custom Field
Product Reviews
1 Review Hide Reviews Show Reviews
-
External Halyard In-Line Single Revolving Truck Assembly
Perfect fit. Super-fast shipping and excellent customer service!
