Concord American Sovereignty Flagpoles - ISW

Concord American Sovereignty Series Internal Winch Flagpoles – 20 ft to 40 ft

ISW Series: internal winch with reinforced raised door frame, stainless steel wire cable halyard

The Sovereignty Series from Concord American Flagpole combines the security of an internal winch and wire cable halyard with the reinforced strength needed for moderate wind areas. Concord's patented raised reinforced door frame, a matched set of inner and outer castings fastened to the pole with eight tamper-proof stainless steel bolts, strengthens the pole around the door opening, and the aluminum door is secured with two tamper-proof screws. The flag is raised and lowered with a removable hand crank on a stainless steel winch, so there is no rope to cut, fray or slap against the pole. Sovereignty poles come in 5" to 7" butt diameters and 20 ft to 40 ft heights, and are a popular choice for schools, churches, offices and municipal buildings.

Each Sovereignty pole is available in 8 finishes, with the price for each finish shown on the product page. Prices are for the flagpole only: freight is quoted to your delivery address, and a freight deposit is charged at checkout and applied to your final freight cost. Email sales@ameritexflags.com with the model, finish and delivery address for a freight quote. For a flush-mount hinged door with a keyed lock and heights up to 70 ft, see the Titan Series.

Concord American Sovereignty ISW internal winch flagpole drawing with revolving truck, wire halyard, winch and reinforced raised door frame

How to Choose a Sovereignty Flagpole

  • Height and flag size. A 20 ft pole flies a 4' x 6' flag, 25 ft a 5' x 8', 30 to 35 ft a 6' x 10', and 40 ft an 8' x 12'.
  • Butt diameter and wall thickness. At each height, a larger base and a thicker wall (.156" or .188") make a stiffer pole with a higher wind rating. In open or high-wind areas, choose the higher rating.
  • One-piece or two-piece. Two-piece poles (model numbers ending in 2) ship in two sections, which makes delivery easier to limited-access sites.
  • Finish. Satin is brushed natural aluminum. Clear anodized adds a hard protective coating, dark bronze and black anodized give a durable darker color, and powder coat is available in bronze tone, black, white or clear. See other available flagpole colors.

Sovereignty Models by Height

Wind ratings are from the Concord American catalog. Height is the exposed height above ground. Each product page has the full specifications, weight and a comparison of the models at that height.

Standard Components

  • Patented heavy-duty gold anodized aluminum ball

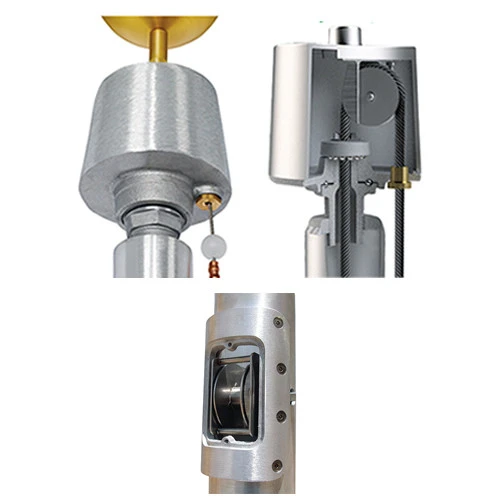

  • Cast aluminum internal revolving truck with dual sealed stainless steel bearing assemblies, aluminum spindle, cast brass exit bushing and removable hood
  • Complete internal halyard assembly: wire halyard cable assembly, flag arrangement (8' x 12' and larger flags include a heavy-duty shock spring assembly), two stainless steel swivel flagsnaps, two neoprene flagsnap covers, patented plastic-coated counterweight and beaded retainer ring assembly
  • Stainless steel winch assembly with removable hand crank
  • Patented reinforced raised door frame with flush mount access door secured by two tamper-proof screws
  • Spun aluminum FC-11 flash collar
  • Galvanized 16-gauge corrugated steel ground sleeve with steel grounding spike

Options

  • Cast aluminum sealed-bearing gold powder-coated ball and truck (8" or 10" ball)
  • Cast aluminum FC-11 flash collar in place of the spun collar
  • Shoe base for surface mounting (all Sovereignty poles)
  • Flagpole lighting

Professional Installation

Ameritex Flag & Flagpole provides professional flagpole installation in San Antonio and the Texas Hill Country and across Texas. See some of our recent flagpole installations, or call 877-598-3524.
