Concord American Xtreme Flagpoles - XIWW
Concord American Xtreme Series XIWW High Wind Internal Winch Flagpoles – 25 ft to 60 ft
XIWW Series: Xtreme internal with winch, stainless steel wire cable halyard
The Xtreme Series XIWW from Concord American Flagpole combines the strength of the Xtreme high wind line with the security of an internal winch and wire cable halyard. Every model has a heavy .250" or .375" wall and Concord's heaviest-duty hardware: an internal revolving truck with sealed bearings and a stainless steel spindle, heavy-duty stainless steel swivel flagsnaps and a cast aluminum flash collar. The result is the higher wind rating needed for coastal and high-wind areas, oversized flags and multiple-flag displays. The flag is raised and lowered with a removable hand crank on a stainless steel winch behind a precision-cut, flush-mount hinged door with a keyed lock, so it cannot be lowered or stolen without the key and crank.
Each Xtreme XIWW pole is available in 8 finishes, with the price for each finish shown on the product page. Prices are for the flagpole only: freight is quoted to your delivery address, and a freight deposit is charged at checkout and applied to your final freight cost. Email sales@ameritexflags.com with the model, finish and delivery address for a freight quote. For a standard-wall internal winch pole, see the Titan or Independence Series. For external halyard high wind poles, see the Xtreme High Wind Flagpoles.
How to Choose an Xtreme XIWW Flagpole
- Height and flag size. A 25 ft pole flies a 5' x 8' flag, 30 ft a 6' x 10', 40 ft an 8' x 12', 50 ft a 10' x 15', and 60 ft a 12' x 18'.
- Wind rating. Every Xtreme XIWW pole is rated at 149 mph or more with a nylon flag, so choose by height and flag size. The 30 ft model comes in one-piece and two-piece versions.
- Number of sections. The last digit of the model number is the number of sections. Two- and three-piece poles ship in shorter sections, which makes delivery easier to limited-access sites.
- Finish. Satin is brushed natural aluminum. Clear anodized adds a hard protective coating, dark bronze and black anodized give a durable darker color, and powder coat is available in bronze tone, black, white or clear. See other available flagpole colors.
Xtreme XIWW Models by Height
- 25 ft – 5' x 8' flag, 190 mph wind rating with a nylon flag:
XIWW25F71 - 30 ft – 6' x 10' flag, 178 mph wind rating with a nylon flag:
XIWW30F81 · XIWW30F82 - 40 ft – 8' x 12' flag, 166 mph wind rating with a nylon flag:
XIWW40F12 - 50 ft – 10' x 15' flag, 158 mph wind rating with a nylon flag:
XIWW50F23 - 60 ft – 12' x 18' flag, 149 mph wind rating with a nylon flag:
XIWW60H23
Wind ratings are from the Concord American catalog. Height is the exposed height above ground. Each product page has the full specifications, weight and a comparison of the models at that height.
Standard Components
- Patented heavy-duty gold anodized aluminum ball

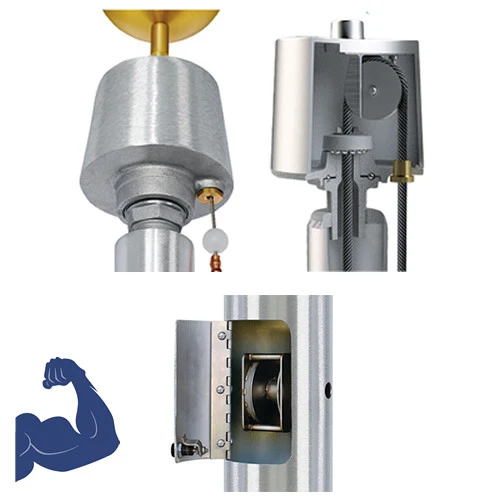

- Heavy-duty cast aluminum internal revolving truck with sealed stainless steel bearing assemblies, stainless steel spindle, cast brass exit bushing and removable hood
- Complete internal halyard assembly: wire halyard cable assembly, flag arrangement (8' x 12' and larger flags include a heavy-duty shock spring assembly), two heavy-duty stainless steel swivel flagsnaps, two neoprene flagsnap covers, patented plastic-coated counterweight and beaded retainer ring assembly
- Stainless steel winch assembly with removable hand crank
- Flush mount hinged access door with lock and keys
- Heavy-duty cast aluminum FC-11 flash collar
- Galvanized 16-gauge corrugated steel ground sleeve with steel grounding spike
Standard upgrades on 10" and 12" butt poles: heavy-duty 5/8" ball stem and two heavy-duty 4-1/4" stainless steel flagsnaps with covers.
Options
- Cast aluminum sealed-bearing gold powder-coated ball and truck (8", 10" or 12" ball)
- Shoe base for surface mounting (all Xtreme XIWW poles)
- Flagpole lighting
Professional Installation
Ameritex Flag & Flagpole provides professional flagpole installation in San Antonio and the Texas Hill Country and across Texas. See some of our recent flagpole installations, or call 877-598-3524.
