Nautical Single Mast Flagpoles
Concord American Nautical Single Mast Flagpoles – 25 ft to 80 ft
NSM Series: external single revolving truck with yardarm and rope halyards

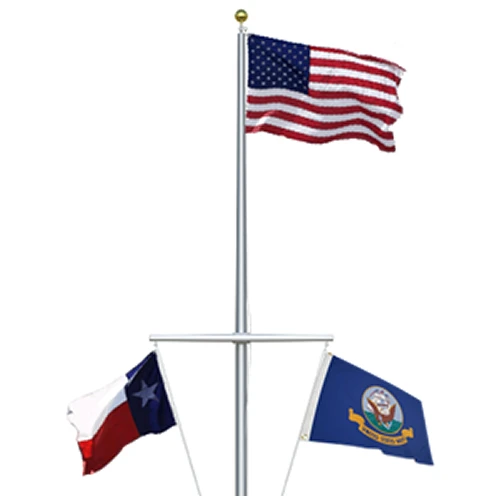

A nautical single mast flagpole adds a yardarm, or crossarm, to a traditional aluminum flagpole, so you can fly up to three flags from one pole: one at the top of the mast and one at each end of the yardarm. It brings the look of a ship's mast to coastal and lake homes, marinas, yacht clubs, waterfront businesses, schools and any site that needs to fly several flags. Concord American builds the NSM Series in 27 models from 25 ft to 80 ft, and an optional gaff can be added for an even more traditional look.
How Flags Are Flown on a Single Mast Nautical Pole
By tradition the U.S. flag flies at the top of the mast. State, club, company or signal flags fly from the two yardarm halyards. If you would like to fly the U.S. flag from a gaff in true maritime style, see the Nautical Double Mast flagpoles, which include both a yardarm and a gaff, or ask us about adding a gaff to a single mast pole.
How to Choose
- Height. 25 to 30 ft suits waterfront homes, lake houses and small marinas. 35 to 40 ft fits yacht clubs, community entrances and commercial properties. 50 ft and taller is for marinas, resorts, harbors and municipal sites seen from a distance.
- Butt diameter and wall thickness. At each height, a larger base and a thicker wall make a stiffer, stronger pole. Choose the heavier model for open waterfronts and high-wind areas.
- One-piece or multi-section. Poles with more than one section ship in shorter pieces, which makes delivery easier to residential and limited-access sites.
- Finish. Satin (brushed aluminum), or bronze tone, black, white or clear powder coat. White is the traditional look of a ship's mast.
Nautical Single Mast Size Guide
| Model | Height | Butt / top | Wall | Sections | Yardarm | Set depth | Approx. weight |
|---|---|---|---|---|---|---|---|
| NSM25B51 | 25 ft | 5" / 3" | .125" | 1 | 8 ft | 2 ft 6 in | 156 lb |
| NSM25C51 | 25 ft | 5" / 3" | .156" | 1 | 8 ft | 2 ft 6 in | 169 lb |
| NSM25C61 | 25 ft | 6" / 3.5" | .156" | 1 | 8 ft | 2 ft 6 in | 206 lb |
| NSM30B51 | 30 ft | 5" / 3" | .125" | 1 | 8 ft | 3 ft | 179 lb |
| NSM30C51 | 30 ft | 5" / 3" | .156" | 1 | 8 ft | 3 ft | 195 lb |
| NSM30C52 | 30 ft | 5" / 3" | .156" | 2 | 8 ft | 3 ft | 195 lb |
| NSM30C61 | 30 ft | 6" / 3.5" | .156" | 1 | 8 ft | 3 ft | 227 lb |
| NSM30C62 | 30 ft | 6" / 3.5" | .156" | 2 | 8 ft | 3 ft | 231 lb |
| NSM30D61 | 30 ft | 6" / 3.5" | .188" | 1 | 8 ft | 3 ft | 247 lb |
| NSM30D62 | 30 ft | 6" / 3.5" | .188" | 2 | 8 ft | 3 ft | 251 lb |
| NSM35C61 | 35 ft | 6" / 3.5" | .156" | 1 | 9 ft 6 in | 3 ft 6 in | 257 lb |
| NSM35C62 | 35 ft | 6" / 3.5" | .156" | 2 | 9 ft 6 in | 3 ft 6 in | 262 lb |
| NSM35C71 | 35 ft | 7" / 3.5" | .156" | 1 | 9 ft 6 in | 3 ft 6 in | 275 lb |
| NSM35C72 | 35 ft | 7" / 3.5" | .156" | 2 | 9 ft 6 in | 3 ft 6 in | 280 lb |
| NSM35D71 | 35 ft | 7" / 3.5" | .188" | 1 | 9 ft 6 in | 3 ft 6 in | 301 lb |
| NSM35D72 | 35 ft | 7" / 3.5" | .188" | 2 | 9 ft 6 in | 3 ft 6 in | 307 lb |
| NSM40C81 | 40 ft | 8" / 4" | .156" | 1 | 10 ft 9 in | 4 ft | 346 lb |
| NSM40C82 | 40 ft | 8" / 3.5" | .156" | 2 | 10 ft 9 in | 4 ft | 351 lb |
| NSM40D81 | 40 ft | 8" / 4" | .188" | 1 | 10 ft 9 in | 4 ft | 380 lb |
| NSM40D82 | 40 ft | 8" / 3.5" | .188" | 2 | 10 ft 9 in | 4 ft | 433 lb |
| NSM50D83 | 50 ft | 8" / 4" | .188" | 3 | 13 ft 6 in | 5 ft | 499 lb |
| NSM50D13 | 50 ft | 10" / 4" | .188" | 3 | 13 ft 6 in | 5 ft | 595 lb |
| NSM60D13 | 60 ft | 10" / 4" | .188" | 3 | 16 ft | 6 ft | 701 lb |
| NSM60F13 | 60 ft | 10" / 4" | .250" | 3 | 16 ft | 6 ft | 763 lb |
| NSM60F23 | 60 ft | 12" / 4" | .250" | 3 | 16 ft | 6 ft | 867 lb |
| NSM70F23 | 70 ft | 12" / 4" | .250" | 3 | 18 ft 9 in | 7 ft | 906 lb |
| NSM80H23 | 80 ft | 12" / 4" | .375" | 3 | 18 ft 9 in | 8 ft | 1,435 lb |
Specifications are from the Concord American catalog. Height is the exposed height above ground. Weight is the approximate shipping weight of the pole, hardware, ground sleeve and yardarm.
Standard Components
- Gold anodized aluminum ball
- Cast aluminum single revolving truck assembly with aluminum pulley
- Yardarm with two eye-hook mounted single pulleys
- Three 5/16" #10 polyester rope halyards with six stainless steel swivel flagsnaps and six neoprene flagsnap covers
- Three 9" heavy-duty aluminum cleats
- Spun aluminum FC-11 flash collar
- Galvanized 16-gauge corrugated steel ground sleeve with steel grounding spike
Models with 10" and 12" butts are upgraded to a heavy-duty truck with dual sealed bearings, 3/8" #12 halyards, heavy-duty flagsnaps, a 5/8" ball stem and a cast aluminum flash collar.
Options
- Cast aluminum sealed-bearing gold powder-coated ball and truck (8", 10" and 12" butts)
- Cast aluminum FC-11 flash collar in place of the standard spun collar
- Shoe base for surface mounting (6" to 12" butts)
- Flagpole lighting
Pricing, Freight and Installation
The price for each finish is shown on every product page. Nautical flagpoles are made to order, so lead times vary, and freight is quoted to your delivery address. Email sales@ameritexflags.com with the model number, finish and delivery address, and tell us whether it is a commercial, residential or limited-access site.
Ameritex Flag & Flagpole provides professional flagpole installation in San Antonio and the Texas Hill Country and across Texas. See some of our recent flagpole installations, or call 877-598-3524.
