Concord American Xtreme Flagpoles - XESR

Concord American Xtreme Series XESR High Wind Flagpoles – 25 ft to 70 ft

XESR Series: Xtreme external single revolving truck with rope halyard

The Xtreme Series XESR from Concord American Flagpole is built for the increased wind ratings needed in coastal and high-wind areas and for oversized or multiple flags. Every model has a heavy .188" to .375" wall and Concord's heaviest-duty external hardware: a cast aluminum single revolving truck with dual sealed bearings and a stainless steel spindle, a heavy-duty 3/8" polyester rope halyard, heavy-duty stainless steel swivel flagsnaps, a 9" cast aluminum cleat and a cast aluminum flash collar. The revolving truck turns with the wind to reduce flag wrapping, and Concord American backs its aluminum flagpole shafts with a lifetime shaft warranty.

Each Xtreme XESR pole is available in 8 finishes, with the price for each finish shown on the product page. Prices are for the flagpole only: freight is quoted to your delivery address, and a freight deposit is charged at checkout and applied to your final freight cost. Email sales@ameritexflags.com with the model, finish and delivery address for a freight quote. For a high wind pole with a locked internal halyard, see the Xtreme XIWW and Xtreme XIRW Series. For standard-wall external halyard poles, see the Continental Series.

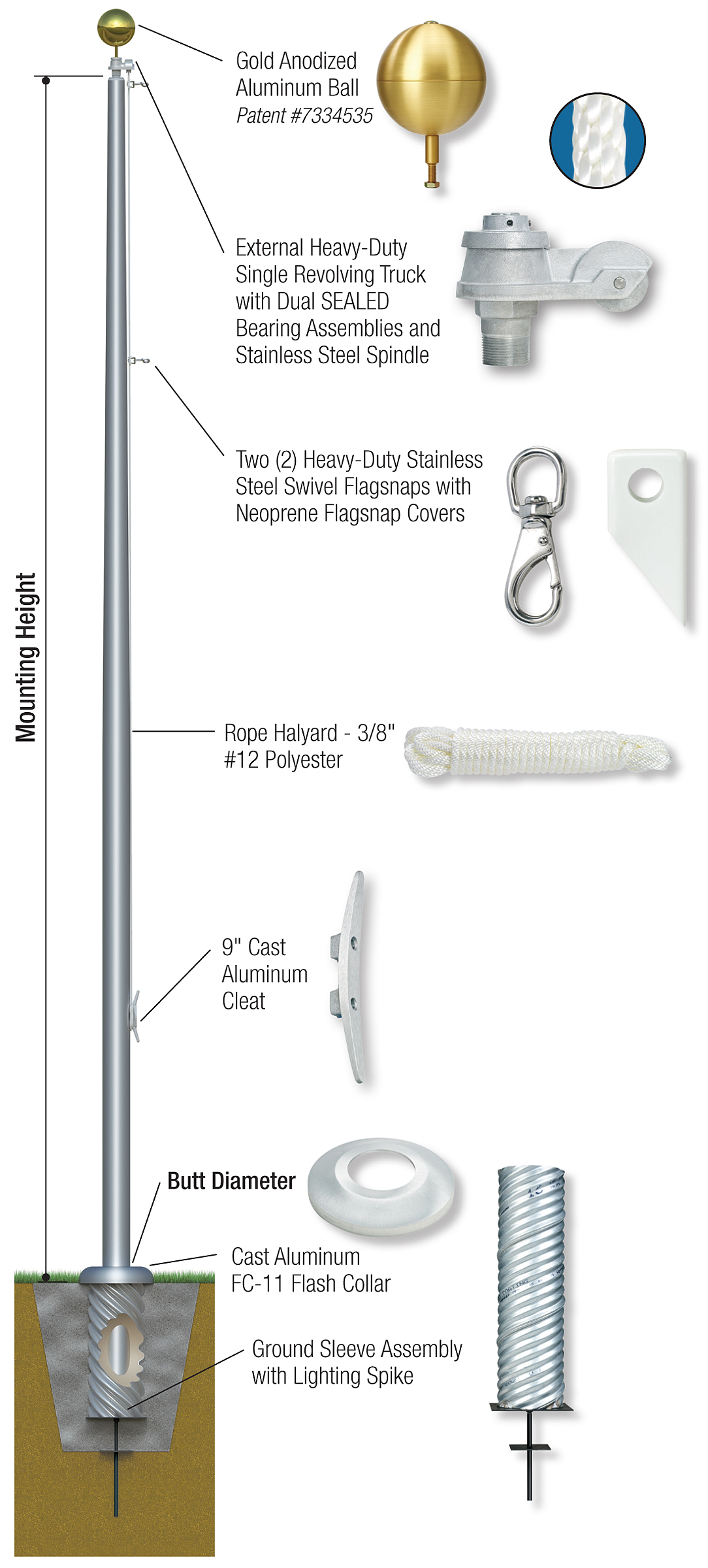

Concord American Xtreme XESR high wind external halyard flagpole drawing

How to Choose an Xtreme XESR Flagpole

  • Height and flag size. A 25 ft pole flies a 5' x 8' flag, 30 to 35 ft a 6' x 10', 40 to 45 ft an 8' x 12', 50 ft a 10' x 15', and 60 to 70 ft a 12' x 18'.
  • Butt diameter and wall thickness. At each height, a larger base and a thicker wall make a stiffer pole with a higher wind rating. Every Xtreme XESR pole is rated at 139 mph or more with a nylon flag.
  • One-piece or multi-section. The last digit of the model number is the number of sections. Two- and three-piece poles ship in shorter pieces, which makes delivery easier to limited-access sites.
  • Finish. Satin is brushed natural aluminum. Clear anodized adds a hard protective coating, dark bronze and black anodized give a durable darker color, and powder coat is available in bronze tone, black, white or clear. See other available flagpole colors.

Xtreme XESR Models by Height

  • 25 ft – 5' x 8' flag, 197 mph wind rating with a nylon flag:
    XESR25F61
  • 30 ft – 6' x 10' flag, 150–157 mph wind rating with a nylon flag:
    XESR30F61 · XESR30F62 · XESR30D71 · XESR30D72
  • 35 ft – 6' x 10' flag, 153–181 mph wind rating with a nylon flag:
    XESR35F71 · XESR35F82
  • 40 ft – 8' x 12' flag, 146 mph wind rating with a nylon flag:
    XESR40F81 · XESR40F82
  • 45 ft – 8' x 12' flag, 168 mph wind rating with a nylon flag:
    XESR45F12
  • 50 ft – 10' x 15' flag, 140–179 mph wind rating with a nylon flag:
    XESR50F13 · XESR50F23
  • 60 ft – 12' x 18' flag, 171 mph wind rating with a nylon flag:
    XESR60H23
  • 70 ft – 12' x 18' flag, 139 mph wind rating with a nylon flag:
    XESR70H23

Wind ratings are from the Concord American catalog. Height is the exposed height above ground. Each product page has the full specifications, weight and a comparison of the models at that height.

Standard Components

Standard upgrades on 10" and 12" butt poles: heavy-duty 5/8" ball stem and two heavy-duty 4-1/4" stainless steel flagsnaps with covers.

Options

  • Double revolving system (XEDR): double truck, extra cleat and complete double halyard assembly, to fly two flags
  • Cast aluminum sealed-bearing gold powder-coated ball and truck (8", 10" or 12" ball)
  • Locking cleat cover box (cylinder lock or padlock), with or without a 5 ft halyard cover
  • Shoe base for surface mounting (all Xtreme XESR poles)
  • Flagpole lighting

Professional Installation

Ameritex Flag & Flagpole provides professional flagpole installation in San Antonio and the Texas Hill Country and across Texas. See some of our recent flagpole installations, or call 877-598-3524.
