Concord American Monarch Series Flagpoles - ICC
Concord American Monarch Series Internal Halyard Flagpoles – 20 ft to 40 ft
ICC Series: internal cam cleat with flush-mount hinged locking door, rope halyard
The Monarch Series from Concord American Flagpole is a commercial-grade aluminum internal halyard flagpole for low to moderate wind areas. The rope halyard runs inside the pole and is secured on a cam cleat behind a precision-cut, flush-mount hinged access door with a compression lock, so the flag cannot be lowered or stolen without a key and there is no rope slapping against the pole. The flush door keeps a clean, smooth look at eye level. Monarch poles are a cost-effective choice for homes, schools, churches, offices and municipal buildings where security and appearance matter.
Each Monarch pole is available in 8 finishes, with the price for each finish shown on the product page. Prices are for the flagpole only: freight is quoted to your delivery address, and a freight deposit is charged at checkout and applied to your final freight cost. Email sales@ameritexflags.com with the model, finish and delivery address for a freight quote. For higher wind ratings, see the Sentry II Series or the Sentry Series.
How to Choose a Monarch Flagpole
- Height and flag size. A 20 ft pole flies a 4' x 6' flag, 25 ft a 5' x 8', 30 to 35 ft a 6' x 10', and 40 ft an 8' x 12'.
- Butt diameter and wall thickness. At each height, a larger base and a thicker wall (.125", .156" or .188") make a stiffer pole with a higher wind rating. In open or high-wind areas, choose the higher rating.
- One-piece or two-piece. Two-piece poles (model numbers ending in 2) ship in two sections, which makes delivery easier to limited-access sites.
- Finish. Satin is brushed natural aluminum. Clear anodized adds a hard protective coating, dark bronze and black anodized give a durable darker color, and powder coat is available in bronze tone, black, white or clear. See other available flagpole colors.
Monarch Models by Height
- 20 ft – 4' x 6' flag, 117–151 mph wind rating with a nylon flag:
ICC20B51 · ICC20D51 - 25 ft – 5' x 8' flag, 84–144 mph wind rating with a nylon flag:
ICC25B51 · ICC25C51 · ICC25C61 · ICC25D61 - 30 ft – 6' x 10' flag, 91–102 mph wind rating with a nylon flag:
ICC30C61 · ICC30C62 · ICC30D61 · ICC30D62 - 35 ft – 6' x 10' flag, 74–107 mph wind rating with a nylon flag:
ICC35C61 · ICC35C62 · ICC35C71 · ICC35C72 · ICC35D71 · ICC35D72 - 40 ft – 8' x 12' flag, 75–107 mph wind rating with a nylon flag:
ICC40C71 · ICC40C72 · ICC40C81 · ICC40C82 · ICC40D81 · ICC40D82
Wind ratings are from the Concord American catalog. Height is the exposed height above ground. Each product page has the full specifications, weight and a comparison of the models at that height.

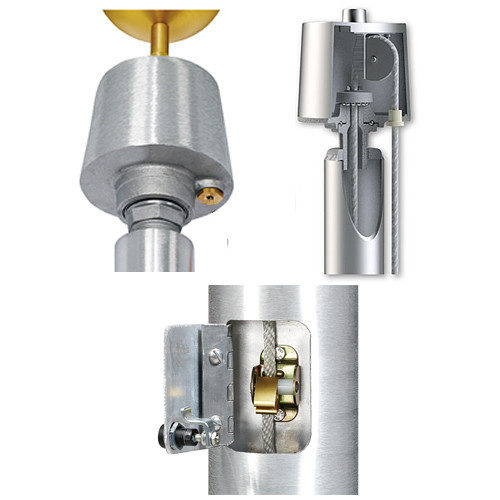

Standard Components
- Patented heavy-duty gold anodized aluminum ball
- Cast aluminum internal revolving truck with sealed stainless steel bearing assemblies, aluminum spindle, cast brass exit bushing and removable hood
- Complete internal halyard assembly: 5/16" #10 polyester rope halyard, two stainless steel swivel flagsnaps, two neoprene flagsnap covers, retainer ring assembly and counterweight
- Cam cleat and flush-mount hinged access door with compression lock and keys
- Spun aluminum FC-11 flash collar
- Galvanized 16-gauge corrugated steel ground sleeve with steel grounding spike
Options
- Cast aluminum sealed-bearing gold powder-coated ball and truck (8" or 10" ball)
- Cast aluminum FC-11 flash collar in place of the spun collar
- Shoe base for surface mounting (5" to 8" butts)
- Flagpole lighting
Professional Installation
Ameritex Flag & Flagpole provides professional flagpole installation in San Antonio and the Texas Hill Country and across Texas. See some of our recent flagpole installations, or call 877-598-3524.
