Product Description

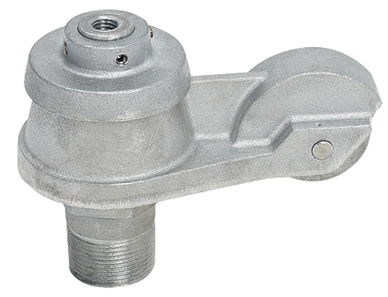

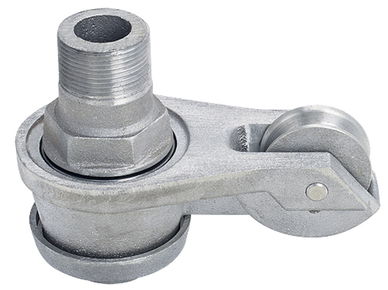

External Halyard Heavy-Duty Single Revolving Truck - TRK-9420 / TRK-9430
The Concord American Flagpole heavy-duty single revolving truck is built for larger external halyard flagpoles that fly big flags. A heavyweight cast aluminum body turns on sealed upper and lower stainless steel ball bearings and carries a 3/8" halyard. It threads into the top of the pole on a spindle, and the top is drilled to accept a ball, eagle or other ornament.
Features
- Heavyweight cast aluminum body and components
- Single aluminum pulley with stainless steel axle
- SEALED upper and lower stainless steel ball bearing assemblies
- 1-1/4" NPT spindle standard; 1-1/2" NPT and stainless steel spindles available (1" NPT on request)
- 1/2"-13NC top drilling for your ornament (5/8"-11NC available)
- Recommended halyard diameter: 3/8"
Sizes and Part Numbers
- TRK-9420 – Clears pole top: 4-1/2"; Satin finish: TRK-9420; Powder coat: TRK-9420-***; Stainless steel spindle: TRK-9420SS / TRK-9420SS-***

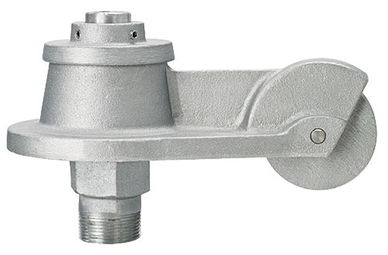

- TRK-9430 – Clears pole top: 7-1/2"; Satin finish: TRK-9430; Powder coat: TRK-9430-***; Stainless steel spindle: TRK-9430SS / TRK-9430SS-***
*** = powder coat color: BZT (BronzeTone), BLK (Black), WHT (White) or CLR (Clear). Powder coated trucks may take longer to ship.
How to measure: check the outside diameter of your pole top and the thread size of the fitting in the top of the pole. Not sure what you need? Call 877-598-3524 or email sales@ameritexflags.com. See all external halyard truck assemblies.
