Concord American Xtreme Flagpoles - XIRW
Concord American Xtreme Series XIRW High Wind Internal Winch Flagpoles – 25 ft to 70 ft
XIRW Series: Xtreme internal reinforced with winch, stainless steel wire cable halyard
The Xtreme Series XIRW from Concord American Flagpole combines the strength of the Xtreme high wind line with a reinforced welded door frame and an internal winch and wire cable halyard. An inset reinforced aluminum door frame is welded into the precision-cut door opening, giving each butt diameter and wall thickness a higher wind rating while keeping a smooth, flush-fitting door. Every pole uses Concord's heaviest-duty hardware: an internal revolving truck with sealed bearings and a stainless steel spindle, heavy-duty stainless steel swivel flagsnaps and a cast aluminum flash collar. That makes the XIRW the choice for the most demanding projects: coastal and high-wind areas, oversized flags and multiple-flag displays. The flag is raised and lowered with a removable hand crank behind a door with a keyed lock, so it cannot be lowered or stolen without the key and crank.
Each Xtreme XIRW pole is available in 8 finishes, with the price for each finish shown on the product page. Prices are for the flagpole only: freight is quoted to your delivery address, and a freight deposit is charged at checkout and applied to your final freight cost. Email sales@ameritexflags.com with the model, finish and delivery address for a freight quote. For a high wind winch pole with a flush-mount hinged door, see the Xtreme XIWW Series. For a standard-wall pole with the same welded door frame, see the Independence Series.
How to Choose an Xtreme XIRW Flagpole
- Height and flag size. A 25 ft pole flies a 5' x 8' flag, 30 to 35 ft a 6' x 10', 40 to 45 ft an 8' x 12', 50 ft a 10' x 15', and 60 to 70 ft a 12' x 18'.
- Butt diameter and wall thickness. At each height, a larger base and a thicker wall (.188" up to .375") make a stiffer pole with a higher wind rating. Every Xtreme XIRW pole is rated at 139 mph or more with a nylon flag.
- Number of sections. The last digit of the model number is the number of sections. Two- and three-piece poles ship in shorter sections, which makes delivery easier to limited-access sites.
- Finish. Satin is brushed natural aluminum. Clear anodized adds a hard protective coating, dark bronze and black anodized give a durable darker color, and powder coat is available in bronze tone, black, white or clear. See other available flagpole colors.
Xtreme XIRW Models by Height
- 25 ft – 5' x 8' flag, 197 mph wind rating with a nylon flag:
XIRW25F61 - 30 ft – 6' x 10' flag, 150–194 mph wind rating with a nylon flag:
XIRW30F61 · XIRW30F62 · XIRW30D71 · XIRW30D72 · XIRW30F71 - 35 ft – 6' x 10' flag, 181 mph wind rating with a nylon flag:
XIRW35F81 · XIRW35F82 - 40 ft – 8' x 12' flag, 146–192 mph wind rating with a nylon flag:
XIRW40F81 · XIRW40F82 · XIRW40F12 - 45 ft – 8' x 12' flag, 168 mph wind rating with a nylon flag:
XIRW45F12 - 50 ft – 10' x 15' flag, 140–179 mph wind rating with a nylon flag:
XIRW50F13 · XIRW50F23 - 60 ft – 12' x 18' flag, 171 mph wind rating with a nylon flag:
XIRW60H23 - 70 ft – 12' x 18' flag, 139 mph wind rating with a nylon flag:
XIRW70H23
Wind ratings are from the Concord American catalog. Height is the exposed height above ground. Each product page has the full specifications, weight and a comparison of the models at that height.
Standard Components

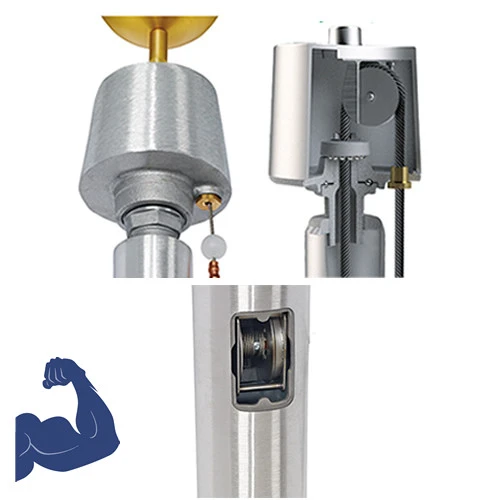

- Patented heavy-duty gold anodized aluminum ball
- Heavy-duty cast aluminum internal revolving truck with sealed stainless steel bearing assemblies, stainless steel spindle, cast brass exit bushing and removable hood
- Complete internal halyard assembly: wire halyard cable assembly, flag arrangement (8' x 12' and larger flags include a heavy-duty shock spring assembly), two heavy-duty stainless steel swivel flagsnaps, two neoprene flagsnap covers, patented plastic-coated counterweight and beaded retainer ring assembly
- Stainless steel winch assembly with removable hand crank
- Reinforced aluminum door frame welded into the door opening
- Flush mount access door with lock and keys
- Heavy-duty cast aluminum FC-11 flash collar
- Galvanized 16-gauge corrugated steel ground sleeve with steel grounding spike
Standard upgrades on 10" and 12" butt poles: heavy-duty 5/8" ball stem and two heavy-duty 4-1/4" stainless steel flagsnaps with covers.
Options
- Cast aluminum sealed-bearing gold powder-coated ball and truck (8", 10" or 12" ball)
- Shoe base for surface mounting (all Xtreme XIRW poles)
- Flagpole lighting
