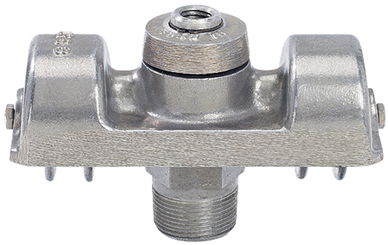

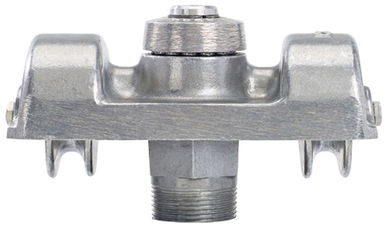

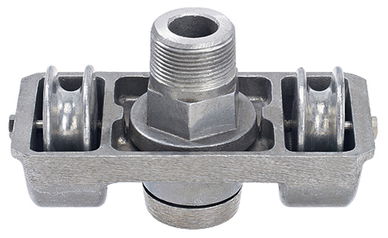

External Halyard Double Revolving Truck - TRK-9709
The Concord American Flagpole TRK-9709 is a double pulley revolving truck for external halyard flagpoles with a 4" pole top. Two pulleys let you fly two flags on separate halyards, and the non-fouling design turns with the wind on upper and lower ball bearings so the flags fly freely without wrapping. The top is drilled to accept a ball, eagle or other ornament.
Features
- Cast aluminum body
- Clears 4" diameter pole tops
- Double aluminum pulleys on stainless steel axles
- Upper and lower stainless steel ball bearing assemblies
- Non-fouling design
- 1-1/4" NPT spindle standard; 1-1/2" NPT and stainless steel spindles available
- 1/2"-13NC top drilling for your ornament (5/8"-11NC available)
- Recommended halyard diameter: 5/16"
Options and Part Numbers
- 1-1/4" NPT cast aluminum (standard) – Satin finish: TRK-9709; Powder coat: TRK-9709-***
- 1-1/2" NPT cast aluminum – Satin finish: TRK-9709; Powder coat: TRK-9709-***
- 1-1/4" NPT stainless steel – Satin finish: TRK-9709SS; Powder coat: TRK-9709SS-***
*** = powder coat color: BZT (BronzeTone), BLK (Black), WHT (White) or CLR (Clear). Powder coated trucks may take longer to ship. A 1" NPT spindle is available on request.
How to measure: check the outside diameter of your pole top and the thread size of the fitting in the top of the pole. Not sure what you need? Call 877-598-3524 or email sales@ameritexflags.com. See all external halyard truck assemblies.
