Concord American Independence Flagpoles - IRW
Concord American Independence Series Internal Winch Flagpoles – 20 ft to 80 ft
IRW Series: internal reinforced with winch, stainless steel wire cable halyard
The Independence Series from Concord American Flagpole is a commercial-grade flagpole built around a heavy-duty internal winch and stainless steel wire cable halyard. An inset reinforced aluminum door frame is welded into the precision-cut door opening, adding strength and giving each butt diameter and wall thickness a higher wind rating than an unreinforced door. The flush-mount door has a keyed lock and the winch crank is removable, so the flag cannot be lowered or stolen without the key and crank, and there is no rope to cut, fray or slap against the pole. Independence poles run from 20 ft to 80 ft and are a popular choice for corporate campuses, government buildings, schools, dealerships and other sites that want strength, security and a clean look.
Each Independence pole is available in 8 finishes, with the price for each finish shown on the product page. Prices are for the flagpole only: freight is quoted to your delivery address, and a freight deposit is charged at checkout and applied to your final freight cost. Email sales@ameritexflags.com with the model, finish and delivery address for a freight quote. For a winch flagpole without the welded door frame, see the Titan Series or the Sovereignty Series.
How to Choose an Independence Flagpole
- Height and flag size. A 20 ft pole flies a 4' x 6' flag, 25 ft a 5' x 8', 30 to 35 ft a 6' x 10', 40 to 45 ft an 8' x 12', 50 to 55 ft a 10' x 15', 60 to 75 ft a 12' x 18', and 80 ft a 15' x 25'.
- Butt diameter and wall thickness. At each height, a larger base and a thicker wall (.156" up to .375") make a stiffer pole with a higher wind rating. In open or high-wind areas, choose the higher rating.
- Number of sections. The last digit of the model number is the number of sections. Two- and three-piece poles ship in shorter sections, which makes delivery easier to limited-access sites.
- Finish. Satin is brushed natural aluminum. Clear anodized adds a hard protective coating, dark bronze and black anodized give a durable darker color, and powder coat is available in bronze tone, black, white or clear. See other available flagpole colors.
Independence Models by Height
- 20 ft – 4' x 6' flag, 208–229 mph wind rating with a nylon flag:
IRW20C61 · IRW20D61 - 25 ft – 5' x 8' flag, 149–168 mph wind rating with a nylon flag:
IRW25C61 · IRW25D61 - 30 ft – 6' x 10' flag, 108–157 mph wind rating with a nylon flag:
IRW30C61 · IRW30C62 · IRW30D61 · IRW30D62 · IRW30D71 · IRW30D72 - 35 ft – 6' x 10' flag, 87–155 mph wind rating with a nylon flag:
IRW35C61 · IRW35C62 · IRW35D61 · IRW35D62 · IRW35C71 · IRW35C72 · IRW35D71 · IRW35D72 · IRW35D81 - 40 ft – 8' x 12' flag, 87–166 mph wind rating with a nylon flag:
IRW40C71 · IRW40C72 · IRW40D71 · IRW40C81 · IRW40C82 · IRW40D81 · IRW40D82 · IRW40D12 - 45 ft – 8' x 12' flag, 102–143 mph wind rating with a nylon flag:
IRW45D82 · IRW45F82 · IRW45D12 - 50 ft – 10' x 15' flag, 83–140 mph wind rating with a nylon flag:
IRW50D83 · IRW50D13 · IRW50F13 - 55 ft – 10' x 15' flag, 102 mph wind rating with a nylon flag:
IRW55D13 - 60 ft – 12' x 18' flag, 86–137 mph wind rating with a nylon flag:
IRW60D13 · IRW60F13 · IRW60F23 - 65 ft – 12' x 18' flag, 122 mph wind rating with a nylon flag:
IRW65F23 - 70 ft – 12' x 18' flag, 109 mph wind rating with a nylon flag:
IRW70F23 - 75 ft – 12' x 18' flag, 126 mph wind rating with a nylon flag:
IRW75H23 - 80 ft – 15' x 25' flag, 107 mph wind rating with a nylon flag:
IRW80H23
Wind ratings are from the Concord American catalog. Height is the exposed height above ground. Each product page has the full specifications, weight and a comparison of the models at that height.
Standard Components

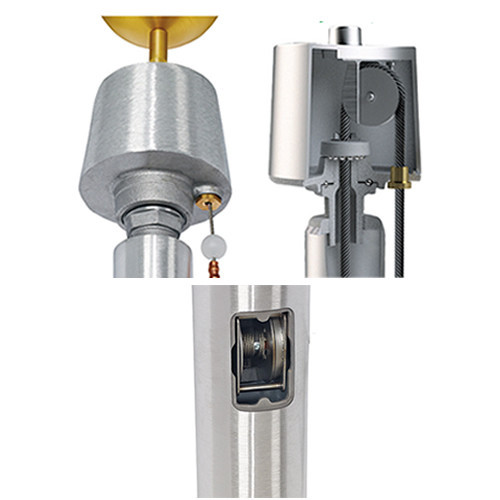

- Patented heavy-duty gold anodized aluminum ball
- Cast aluminum internal revolving truck with sealed stainless steel bearing assemblies, aluminum spindle, cast brass exit bushing and removable hood
- Complete internal halyard assembly: wire halyard cable assembly, flag arrangement (8' x 12' and larger flags include a heavy-duty shock spring assembly), two stainless steel swivel flagsnaps, two neoprene flagsnap covers, patented plastic-coated counterweight and beaded retainer ring assembly
- Stainless steel winch assembly with removable hand crank
- Reinforced aluminum door frame welded into the door opening
- Flush mount access door with lock and keys
- Spun aluminum FC-11 flash collar
- Galvanized 16-gauge corrugated steel ground sleeve with steel grounding spike
Standard upgrades on 10" and 12" butt poles: heavy-duty dual sealed bearing truck, two heavy-duty stainless steel flagsnaps, heavy-duty cast aluminum FC-11 flash collar and heavy-duty 5/8" ball stem.
Options
- Cast aluminum sealed-bearing gold powder-coated ball and truck (8", 10" or 12" ball)
- Cast aluminum FC-11 flash collar in place of the spun collar (6" to 8" butts)
- Shoe base for surface mounting (all Independence poles)
- Flagpole lighting
Professional Installation
Ameritex Flag & Flagpole provides professional flagpole installation in San Antonio and the Texas Hill Country and across Texas. See some of our recent flagpole installations, or call 877-598-3524.
