Concord American Titan Series Flagpoles - IWW
Concord American Titan Series Internal Winch Flagpoles – 20 ft to 70 ft
IWW Series: internal halyard with winch, stainless steel wire cable halyard
The Titan Series from Concord American Flagpole is a commercial-grade aluminum flagpole with the security of an internal winch and wire cable halyard. The flag is raised and lowered with a removable hand crank on a stainless steel winch, and the winch and cable are concealed inside the pole behind a precision-cut, flush-mount hinged door with a keyed lock. Without the key and crank, the flag cannot be lowered or stolen, and there is no rope to cut, fray or slap against the pole. Titan poles run from 20 ft to 70 ft and are a popular choice for schools, government buildings, corporate campuses, dealerships and any site that needs around-the-clock flag security.
Each Titan pole is available in 8 finishes, with the price for each finish shown on the product page. Prices are for the flagpole only: freight is quoted to your delivery address, and a freight deposit is charged at checkout and applied to your final freight cost. Email sales@ameritexflags.com with the model, finish and delivery address for a freight quote. For a rope halyard with a cam cleat instead of a winch, see the Monarch, Sentry or Sentry II Series.
How to Choose a Titan Flagpole
- Height and flag size. A 20 ft pole flies a 4' x 6' flag, 25 ft a 5' x 8', 30 to 35 ft a 6' x 10', 40 to 45 ft an 8' x 12', 50 ft a 10' x 15', and 60 to 70 ft a 12' x 18'.
- Butt diameter and wall thickness. At each height, a larger base and a thicker wall (.156", .188" or .250") make a stiffer pole with a higher wind rating. In open or high-wind areas, choose the higher rating.
- Number of sections. The last digit of the model number is the number of sections. Two- and three-piece poles ship in shorter sections, which makes delivery easier to limited-access sites.
- Finish. Satin is brushed natural aluminum. Clear anodized adds a hard protective coating, dark bronze and black anodized give a durable darker color, and powder coat is available in bronze tone, black, white or clear. See other available flagpole colors.
Titan Models by Height
- 20 ft – 4' x 6' flag, 152–174 mph wind rating with a nylon flag:
IWW20C61 · IWW20D61 - 25 ft – 5' x 8' flag, 100–112 mph wind rating with a nylon flag:
IWW25C61 · IWW25D61 - 30 ft – 6' x 10' flag, 75–113 mph wind rating with a nylon flag:
IWW30C61 · IWW30C62 · IWW30D61 · IWW30D62 · IWW30C71 · IWW30C72 · IWW30D71 · IWW30D72 - 35 ft – 6' x 10' flag, 80–119 mph wind rating with a nylon flag:
IWW35C71 · IWW35C72 · IWW35D71 · IWW35D72 · IWW35D81 · IWW35D82 - 40 ft – 8' x 12' flag, 65–141 mph wind rating with a nylon flag:
IWW40C71 · IWW40C72 · IWW40C81 · IWW40C82 · IWW40D81 · IWW40D82 · IWW40D12 - 45 ft – 8' x 12' flag, 76–118 mph wind rating with a nylon flag:
IWW45D82 · IWW45D12 - 50 ft – 10' x 15' flag, 94–115 mph wind rating with a nylon flag:
IWW50D13 · IWW50F13 - 60 ft – 12' x 18' flag, 68–117 mph wind rating with a nylon flag:
IWW60D13 · IWW60F13 · IWW60F23 - 70 ft – 12' x 18' flag, 90 mph wind rating with a nylon flag:
IWW70F23
Wind ratings are from the Concord American catalog. Height is the exposed height above ground. Each product page has the full specifications, weight and a comparison of the models at that height.
Standard Components
- Patented heavy-duty gold anodized aluminum ball

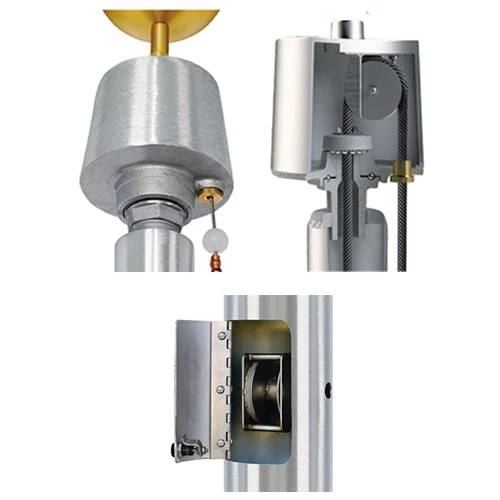

- Cast aluminum internal revolving truck with dual sealed stainless steel bearing assemblies, aluminum spindle, cast brass exit bushing and removable hood
- Complete internal halyard assembly: wire halyard cable assembly, flag arrangement (8' x 12' and larger flags include a heavy-duty shock spring assembly), two stainless steel swivel flagsnaps, two neoprene flagsnap covers, patented plastic-coated counterweight and beaded retainer ring assembly
- Stainless steel winch assembly with removable hand crank
- Flush mount hinged access door with lock and keys
- Spun aluminum FC-11 flash collar
- Galvanized 16-gauge corrugated steel ground sleeve with steel grounding spike
Standard upgrades on 10" and 12" butt poles: heavy-duty large cast aluminum revolving truck, two heavy-duty stainless steel flagsnaps, heavy-duty cast aluminum FC-11 flash collar and heavy-duty 5/8" ball stem.
Options
- Cast aluminum sealed-bearing gold powder-coated ball and truck (8", 10" or 12" ball)
- Cast aluminum FC-11 flash collar in place of the spun collar (6" to 8" butts)
- Shoe base for surface mounting (all Titan poles)
- Flagpole lighting
