Nautical Double Mast Flagpoles

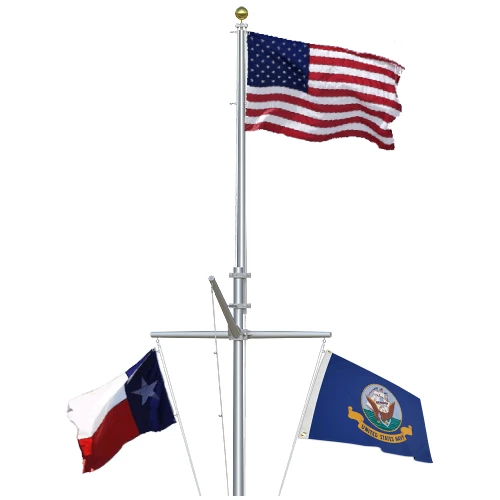

Concord American Nautical Double Mast Flagpoles – 30 ft to 80 ft
NDM Series: external double revolving truck with yardarm, gaff and rope halyards
The nautical double mast flagpole is the most traditional maritime flagpole Concord American makes. High-strength aluminum brackets join an offset double shaft, and every pole comes with both a yardarm and a gaff, recreating the rig of a historic sailing vessel. With five halyards it can fly up to five flags, which makes it a centerpiece for yacht clubs, marinas, harbors, waterfront estates, museums and maritime-themed properties. The NDM Series comes in 9 models from 30 ft to 80 ft.
How Flags Are Flown on a Double Mast Nautical Pole
In maritime tradition the gaff is the position of honor, so the U.S. flag flies from the gaff even though it sits lower than the top of the pole. A club burgee or organization flag flies at the top, and state, company, officer or signal flags fly from the yardarm. This is the arrangement used by yacht clubs and the U.S. Power Squadrons. If you only need to fly up to three flags, see the Nautical Single Mast flagpoles.
How to Choose
- Height. 30 ft suits waterfront homes, lake houses and small marinas. 35 to 40 ft fits yacht clubs, community entrances and commercial properties. 50 ft and taller is for marinas, resorts, harbors and municipal sites seen from a distance.
- Butt diameter and wall thickness. At each height, a larger base and a thicker wall make a stiffer, stronger pole. Choose the heavier model for open waterfronts and high-wind areas.
- One-piece or multi-section. Poles with more than one section ship in shorter pieces, which makes delivery easier to residential and limited-access sites.
- Finish. Satin (brushed aluminum), or bronze tone, black, white or clear powder coat. White is the traditional look of a ship's mast.
Nautical Double Mast Size Guide
| Model | Height | Butt / top | Wall | Sections | Yardarm | Gaff | Set depth | Approx. weight |
|---|---|---|---|---|---|---|---|---|
| NDM30D61 | 30 ft | 6" / 3.5" | .188" | 1 | 8 ft | 5 ft | 3 ft | 305 lb |
| NDM30D62 | 30 ft | 6" / 3.5" | .188" | 2 | 8 ft | 5 ft | 3 ft | 309 lb |
| NDM35D71 | 35 ft | 7" / 3.5" | .188" | 1 | 9 ft 6 in | 6 ft | 3 ft 6 in | 353 lb |
| NDM35D72 | 35 ft | 7" / 3.5" | .188" | 2 | 9 ft 6 in | 6 ft | 3 ft 6 in | 358 lb |
| NDM40D81 | 40 ft | 8" / 4" | .188" | 1 | 10 ft 9 in | 7 ft | 4 ft | 425 lb |
| NDM40D82 | 40 ft | 8" / 4" | .188" | 2 | 10 ft 9 in | 7 ft | 4 ft | 431 lb |
| NDM50D13 | 50 ft | 10" / 4" | .188" | 3 | 13 ft 6 in | 9 ft | 5 ft | 671 lb |
| NDM60F23 | 60 ft | 12" / 4" | .250" | 3 | 16 ft | 10 ft 9 in | 6 ft | 943 lb |
| NDM80H23 | 80 ft | 12" / 4" | .375" | 3 | 18 ft 9 in | 12 ft 9 in | 8 ft | 1,525 lb |
Specifications are from the Concord American catalog. Height is the exposed height above ground. Weight is the approximate shipping weight of the pole, hardware, ground sleeve, yardarm and gaff.
Standard Components
- Patented heavy-duty gold anodized aluminum ball
- Cast aluminum double revolving truck assembly with aluminum pulleys
- Extruded aluminum flagpole bands with stainless steel attaching hardware
- Yardarm and gaff with three eye-hook mounted single pulleys
- Five 5/16" #10 polyester rope halyards with ten stainless steel swivel flagsnaps and ten neoprene flagsnap covers
- Five 9" heavy-duty aluminum cleats
- Spun aluminum FC-11 flash collar
- Galvanized 16-gauge corrugated steel ground sleeve with steel grounding spike
Models with 10" and 12" butts are upgraded to a heavy-duty truck with dual sealed bearings, 3/8" #12 halyards, heavy-duty flagsnaps, a 5/8" ball stem and a cast aluminum flash collar.
Options
- Cast aluminum sealed-bearing gold powder-coated ball and truck (8", 10" and 12" butts)
- Cast aluminum FC-11 flash collar in place of the standard spun collar
- Shoe base for surface mounting (6" to 12" butts)
- Flagpole lighting
Pricing, Freight and Installation
The price for each finish is shown on every product page. Nautical flagpoles are made to order, so lead times vary, and freight is quoted to your delivery address. Email sales@ameritexflags.com with the model number, finish and delivery address, and tell us whether it is a commercial, residential or limited-access site.
