Product Description

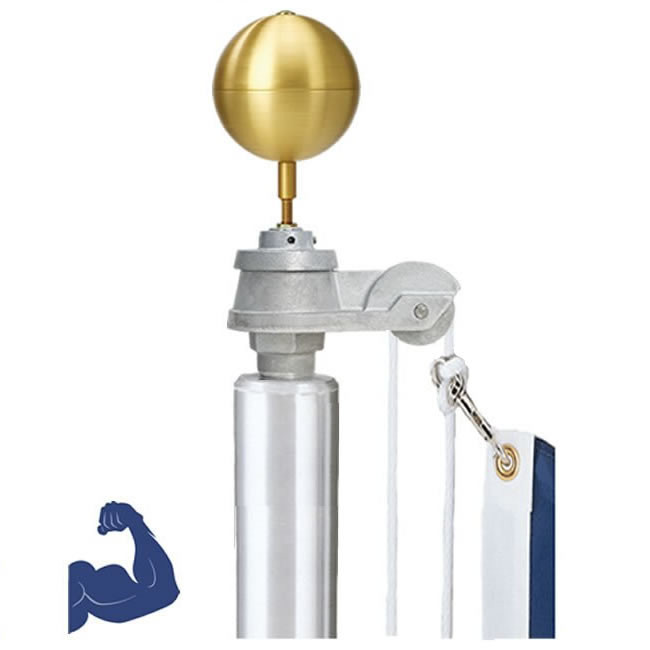

Concord American Xtreme Series XESR 50 ft High Wind External Halyard Flagpole – XESR50F13
Pole price only. Freight is not included. A $500 freight deposit per pole is charged at checkout and credited toward your actual freight cost, which we quote to your delivery address. If freight costs less than the deposit, we refund the difference; if it costs more, we invoice the balance. Request a freight quote before you order.
Xtreme External Single Revolving – Rope Halyard
The Xtreme Series XESR from Concord American Flagpole is a high wind external halyard flagpole, built with the increased wind ratings needed for coastal, high-wind, oversized-flag and multiple-flag applications. The heavy-wall aluminum shaft is paired with Concord's heaviest-duty hardware: a cast aluminum single revolving truck with dual sealed bearings and a stainless steel spindle, a heavy-duty 3/8" polyester rope halyard, heavy-duty stainless steel swivel flagsnaps, a 9" cast aluminum cleat and a cast aluminum flash collar. The revolving truck lets the flag turn freely with the wind, which reduces wear on the flag and the halyard. This 50 ft model has a 10" butt diameter and .250" wall, is rated for winds up to 140 mph with a nylon flag, and flies a 10 ft x 15 ft flag. This height is built for large commercial sites, highway-visible businesses, stadiums and government buildings.
Specifications
| Mounting height | 50 ft |
| Overall length | 55 ft |
| Butt (base) diameter | 10 in |
| Top diameter | 4 in |
| Wall thickness | .250 in |
| Pole sections | 3 (ships in 3 sections) |
| Set depth | 5 ft |
| Recommended flag size | 10' x 15' |
| Max wind speed with nylon flag | 140 mph |
| Max wind speed with no flag | 191 mph |
| Halyard system | External 3/8" polyester rope halyard on a single revolving truck, tied off on a 9" cast aluminum cleat |
| Approximate shipping weight | 498 lb |
| Catalog number | XESR50F13-*** (*** = finish code) |
Wind ratings are from the Concord American catalog for the exposed height above ground.
Choosing the Right 50 ft Model
Concord American offers 2 Xtreme XESR models at 50 ft. They differ in base (butt) diameter, wall thickness and number of sections. A larger base and thicker wall give a higher wind rating:
- XESR50F13 (this model): 10" butt, .250" wall, 3 sections, 140 mph with flag, about 498 lb
- XESR50F23: 12" butt, .250" wall, 3 sections, 179 mph with flag, about 585 lb
Multi-section poles ship in shorter pieces, which makes delivery easier to residential and limited-access sites. For open areas and coastal or high-wind locations, choose the higher wind rating.
Compare all 14 Xtreme XESR flagpoles »
Standard Components
- Patented heavy-duty gold anodized aluminum ball with heavy-duty 5/8" ball stem
- Heavy-duty cast aluminum single revolving truck with dual sealed bearing assemblies, aluminum pulley and stainless steel spindle
- Complete external halyard assembly: heavy-duty 3/8" #12 polyester rope halyard, two heavy-duty 4-1/4" stainless steel swivel flagsnaps and two neoprene flagsnap covers
- 9" cast aluminum cleat
- Heavy-duty cast aluminum FC-11 flash collar
- Galvanized 16-gauge corrugated steel ground sleeve with steel grounding spike
Finish Options
- Satin (SAT): brushed natural aluminum
- Clear Anodized (ACL): hard protective coating that keeps the aluminum look
- Dark Bronze Anodized (ADB)
- Black Anodized (ABL)
- Bronze Tone Powder Coat (BZT)
- Black Powder Coat (BLK)
- White Powder Coat (WHT)
- Clear Powder Coat (CLR)
Available Options
- Double revolving system (XEDR): double truck, extra cleat and complete double halyard assembly, to fly two flags
- Cast aluminum sealed-bearing gold powder-coated ball and truck (8", 10" or 12" ball) in place of the standard truck and ball
- Locking cleat cover box (cylinder lock or padlock)
- Locking cleat cover box with 5 ft halyard cover
- Shoe base for surface mounting
- Flagpole lighting
Ask us about any of these options when you request your quote.
Frequently Asked Questions
What size flag does this pole fly?
The recommended flag size for the XESR50F13 is 10' x 15'.
How is it installed?
The pole sets 5 ft into a concrete foundation using the included galvanized steel ground sleeve, for a total length of 55 ft. A shoe base for surface mounting is available as an option.
How does it ship?
The XESR50F13 ships by truck freight in 3 sections, with an approximate shipping weight of 498 lb. A $500 freight deposit is charged at checkout and applied to the actual freight cost.
How is the flag raised and lowered?
The rope halyard runs on the outside of the pole and ties off on the 9" cast aluminum cleat at the base. For added security, a locking cleat cover box, with or without a 5 ft halyard cover, is available as an option.
Why choose an Xtreme high wind flagpole?
Xtreme poles have heavier walls and heavier-duty hardware than standard commercial poles, which gives them the higher wind ratings needed near the coast, in open high-wind areas and for oversized or multiple flags.
Is there a warranty?
Concord American backs its aluminum flagpole shafts with a lifetime flagpole shaft warranty, subject to Concord American's warranty terms.
Do you install flagpoles?
Yes. Ameritex Flag & Flagpole installs flagpoles in San Antonio and the Texas Hill Country and across Texas. Call 877-598-3524 for an installation quote.
Freight Quote
Prices are subject to change. Freight costs depend on your location, so please email sales@ameritexflags.com with the delivery address and whether it is a commercial, residential or limited-access site, and we'll send you a material and freight quote.
