Product Description
Concord American Titan Series 60 ft Internal Winch Flagpole – IWW60D13
Pole price only. Freight is not included. A $500 freight deposit per pole is charged at checkout and credited toward your actual freight cost, which we quote to your delivery address. If freight costs less than the deposit, we refund the difference; if it costs more, we invoice the balance. Request a freight quote before you order.
Internal With Winch – Wire Halyard

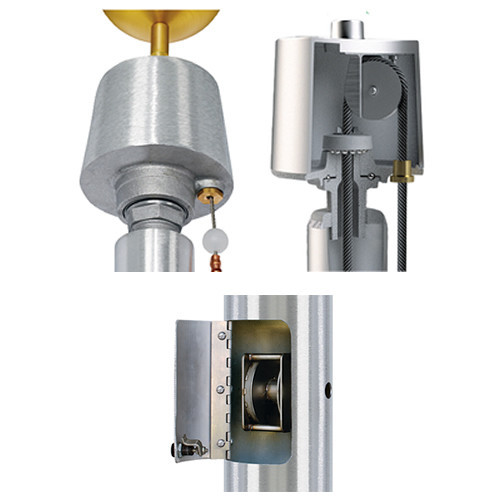

The Titan Series from Concord American Flagpole is a commercial-grade internal halyard flagpole with the added security of a stainless steel wire cable halyard raised and lowered by an internal winch. The winch and cable are concealed inside the pole behind a precision-cut, flush-mount hinged door with a keyed lock, and the hand crank is removable, so the flag cannot be lowered or stolen without a key and the crank, and there is no rope to cut or slap against the pole. This 60 ft model has a 10" butt diameter and .188" wall, is rated for winds up to 68 mph with a nylon flag, and flies a 12 ft x 18 ft flag. This height is built for large commercial sites, highway-visible businesses, stadiums and government buildings.
Specifications
| Mounting height | 60 ft |
| Overall length | 66 ft |
| Butt (base) diameter | 10 in |
| Top diameter | 4 in |
| Wall thickness | .188 in |
| Pole sections | 3 (ships in 3 sections) |
| Set depth | 6 ft |
| Recommended flag size | 12' x 18' |
| Max wind speed with nylon flag | 68 mph |
| Max wind speed with no flag | 89 mph |
| Halyard system | Internal stainless steel wire cable halyard with winch and removable hand crank, behind a flush-mount hinged locking door |
| Approximate shipping weight | 501 lb |
| Catalog number | IWW60D13-*** (*** = finish code) |
Wind ratings are from the Concord American catalog for the exposed height above ground.
Choosing the Right 60 ft Model
Concord American offers 3 Titan Series models at 60 ft. They differ in base (butt) diameter, wall thickness and number of sections. A larger base and thicker wall give a higher wind rating:
- IWW60D13 (this model): 10" butt, .188" wall, 3 sections, 68 mph with flag, about 501 lb
- IWW60F13: 10" butt, .250" wall, 3 sections, 82 mph with flag, about 644 lb
- IWW60F23: 12" butt, .250" wall, 3 sections, 117 mph with flag, about 667 lb
Multi-section poles ship in shorter pieces, which makes delivery easier to residential and limited-access sites. For open areas and coastal or high-wind locations, choose the higher wind rating.
Compare all 33 Titan Series flagpoles »
Standard Components
- Patented heavy-duty gold anodized aluminum ball with heavy-duty 5/8" ball stem
- Heavy-duty large cast aluminum internal revolving truck with dual sealed stainless steel bearing assemblies, aluminum spindle, cast brass exit bushing and removable hood
- Complete internal halyard assembly: wire halyard cable assembly, flag arrangement with heavy-duty shock spring assembly, two heavy-duty stainless steel flagsnaps, two neoprene flagsnap covers, patented plastic-coated counterweight and beaded retainer ring assembly
- Stainless steel winch assembly with removable hand crank
- Flush mount hinged access door with lock and keys
- Heavy-duty cast aluminum FC-11 flash collar
- Galvanized 16-gauge corrugated steel ground sleeve with steel grounding spike
Finish Options
- Satin (SAT): brushed natural aluminum
- Clear Anodized (ACL): hard protective coating that keeps the aluminum look
- Dark Bronze Anodized (ADB)
- Black Anodized (ABL)
- Bronze Tone Powder Coat (BZT)
- Black Powder Coat (BLK)
- White Powder Coat (WHT)
- Clear Powder Coat (CLR)
Available Options
- Cast aluminum sealed-bearing gold powder-coated ball and truck (8", 10" or 12" ball) in place of the standard truck and ball
- Shoe base for surface mounting
- Flagpole lighting
Ask us about any of these options when you request your quote.
Frequently Asked Questions
What size flag does this pole fly?
The recommended flag size for the IWW60D13 is 12' x 18'.
How is it installed?
The pole sets 6 ft into a concrete foundation using the included galvanized steel ground sleeve, for a total length of 66 ft. A shoe base for surface mounting is available as an option.
How does it ship?
The IWW60D13 ships by truck freight in 3 sections, with an approximate shipping weight of 501 lb. A $500 freight deposit is charged at checkout and applied to the actual freight cost.
How is the flag raised and lowered?
Open the locking access door, attach the removable hand crank to the stainless steel winch and turn it to raise or lower the flag on the internal wire cable. Remove the crank and lock the door when you are done.
Why choose an internal winch flagpole?
The wire halyard and winch are hidden inside the pole and locked behind the access door, which prevents flag theft and vandalism, protects the halyard from weather and cutting, and stops it from slapping against the pole in the wind. A wire cable cannot be cut as easily as rope, giving round-the-clock security for the flag.
Is there a warranty?
Concord American backs its aluminum flagpole shafts with a lifetime flagpole shaft warranty, subject to Concord American's warranty terms.
Do you install flagpoles?
Yes. Ameritex Flag & Flagpole installs flagpoles in San Antonio and the Texas Hill Country and across Texas. Call 877-598-3524 for an installation quote.
Freight Quote
Prices are subject to change. Freight costs depend on your location, so please email sales@ameritexflags.com with the delivery address and whether it is a commercial, residential or limited-access site, and we'll send you a material and freight quote.
