Product Description

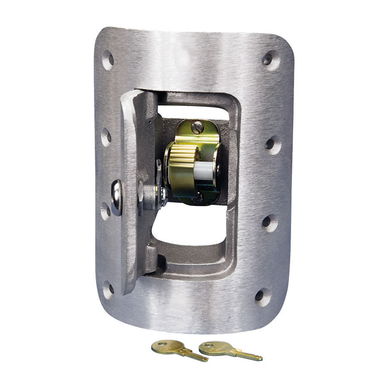

Internal Halyard Door & Frame Unit for 5" Flagpoles
This Eder door and frame unit gives a 5" diameter internal halyard flagpole a hinged, locking access door. It is used with rope (cam cleat) internal halyard systems: the door mounts to the front of the frame and a cam cleat can be mounted to the back. The whole unit slides into the pole shaft and is held with eight stainless steel screws. A lock and two keys are included.
Features
- Fits 5" diameter flagpoles with a .188" wall
- For rope style (cam cleat) internal halyard systems
- Hinged locking door; lock and keys included
- Available with or without the cam cleat
- Installs with eight 1/4"-20NC stainless steel screws
- Minimum hole opening: 5-1/2" x 3-1/4"
- Silver standard, or painted to match Clear, Bronze, White or Black
Part Numbers
- Silver – With cam cleat: 360293; No cam cleat: 360294
- Clear – With cam cleat: —; No cam cleat: 360296
- Bronze – With cam cleat: 360297; No cam cleat: 360298
- White – With cam cleat: —; No cam cleat: 360300
- Black – With cam cleat: 360301; No cam cleat: 360302
Clear and White are available only without the cam cleat. Questions about fit? Call 877-598-3524 or email sales@ameritexflags.com.
