Product Description
Concord American VIW 20 ft Internal Winch Vertical Wall Mount Flagpole – VIW20D51
Pole price only. Truck freight is added at checkout. Enter your delivery ZIP code in the Get a freight quote box above to see your freight cost, then click Add to Cart with Freight. Freight is calculated from our Texas warehouse to your ZIP code. Residential delivery, liftgate service and call-ahead or appointment delivery may add charges; if your delivery needs any of these, we will call you to confirm the final freight cost before your order ships.
Internal Vertical Wall Mount Series – Internal Winch – Wire Halyard – Made to Order

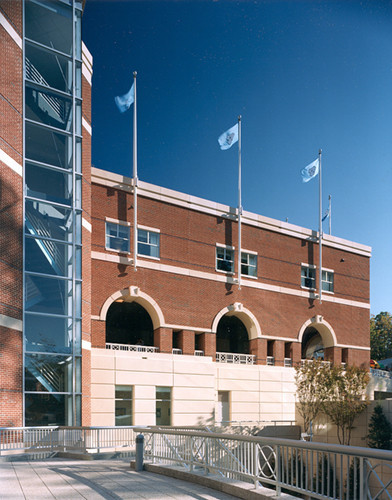

The VIW puts Concord American's winch and wire cable system, used in its Independence Series, into a vertical wall mount. The stainless steel wire halyard runs inside the shaft and is operated with a removable hand crank, so the flag cannot be lowered without the crank. That makes it the most vandal-resistant choice, with the clean look of an internal halyard pole. The winch sits on a platform in the bottom of the lower bracket and can be removed for maintenance by taking out a tamper-proof mounting screw. This 20 ft model has a 5" butt diameter, 3" top diameter and .188" wall, in one tapered aluminum piece. The shaft slides through the upper bracket into the lower bracket and rests on an internally welded ring. Both aluminum brackets have dual mounting plates with 8 attachment bolts in total, and set screws lock the pole in place. Internal halyard vertical wall mount poles are a good fit for schools, government buildings, parking garages and storefronts where a secure, clean-looking flagpole is needed. Each pole is made to order.
Specifications
| Model | VIW Internal Winch – Wire Halyard |
| Maximum mounting height | 20 ft |
| Butt (base) diameter | 5 in |
| Top diameter | 3 in |
| Wall thickness | .188 in |
| Shaft | Tapered aluminum, 1 piece |
| Recommended flag size | 4' x 6' |
| Approximate shipping weight | 157 lb (shaft 79 lb, hardware 78 lb) |
| Halyard system | Internal stainless steel wire cable halyard on a stainless steel winch in the lower bracket, with removable hand crank |
| Mounting | Vertical wall mount, upper and lower aluminum brackets with 8 attachment bolts. Anchorage by others |
| Catalog number | VIW20D51-*** (*** = finish code) |
Choosing the Right Height
The VIW comes in 3 sizes, all with a 5" x .188" shaft:
- VIW20D51 (this model): 20 ft, recommended flag 4' x 6'
- VIW25D51: 25 ft, recommended flag 5' x 8'
- VIW30D51: 30 ft, recommended flag 6' x 10'
Prefer a rope halyard with cam cleat? See the VIC20D51 20 ft Internal Cam Cleat. For an external rope halyard at a lower price, see the VTR models.
See all Concord American Vertical Internal Winch Flagpoles » | All Vertical Wall Mount flagpoles »
Standard Components
- Patented heavy-duty gold anodized aluminum ball
- Cast aluminum internal revolving truck with sealed stainless steel bearing assemblies, aluminum spindle, cast brass exit bushing and removable hood
- Complete internal halyard assembly: wire halyard cable assembly, flag arrangement (heavy-duty shock spring assembly for 8' x 12' flags and larger), two stainless steel swivel flagsnaps with neoprene covers, patented plastic-coated counterweight and two beaded retainer ring assemblies
- Stainless steel winch assembly with removable hand crank, on a removable platform in the lower bracket
- Upper and lower aluminum wall brackets with dual mounting plates (8 attachment bolts total) and set screws
- Second retainer ring assembly and connecting link for the top of the flag
Wall anchorage (bolts and sleeves for your wall) is by others.
Finish Options
- Satin (SAT): brushed natural aluminum
- Bronze Tone Powder Coat (BZT)
- Black Powder Coat (BLK)
- White Powder Coat (WHT)
- Clear Powder Coat (CLR)
Available Options
- Ball and truck upgrade
- Flagpole lighting
Ask us about these options when you request your quote.
Frequently Asked Questions
How is it mounted?
The VIW20D51 mounts to the building with upper and lower aluminum brackets, each with dual mounting plates, for 8 attachment bolts in total. Anchorage to your wall is by others, so have your contractor or engineer choose the anchors for your wall type.
How is the flag raised and lowered?
Insert the removable hand crank into the winch at the lower bracket and turn it to raise or lower the flag. Without the crank, the flag cannot be lowered. A second retainer ring assembly and connecting link are included for the top of the flag, to help lower the flag to the top of the upper bracket.
How long does it take?
Vertical wall mount flagpoles are made to order, and lead times vary. Call us for a current lead time.
How does it ship?
The VIW20D51 ships by truck freight in one piece, with an approximate shipping weight of 157 lb. Freight is quoted to your ZIP code on this page and added to your cart.
Is there a quantity discount?
Concord American offers quantity discounts on orders of 5 or more flagpoles, and poles from different series can be combined. Call or email us for a quantity quote.
Do you install flagpoles?
Yes. Ameritex Flag & Flagpole installs flagpoles in San Antonio and the Texas Hill Country and across Texas. Use the Request Installation Quote button above or call 877-598-3524.
Freight Quote
Prices are subject to change. Get an instant truck freight quote to your ZIP code in the Get a freight quote box near the top of this page. For residential or limited-access delivery, or for a combined material and freight quote, email sales@ameritexflags.com or call 877-598-3524.
