Product Description
Concord American Presidential Collection 75 ft White House Flagpole – IRW75H23P-WHT
Pole price only. Freight is not included. A $500 freight deposit per pole is charged at checkout and credited toward your actual freight cost, which we quote to your delivery address. If freight costs less than the deposit, we refund the difference; if it costs more, we invoice the balance. Request a freight quote before you order.
White Powder Coat – Internal Reinforced with Winch – Wire Halyard

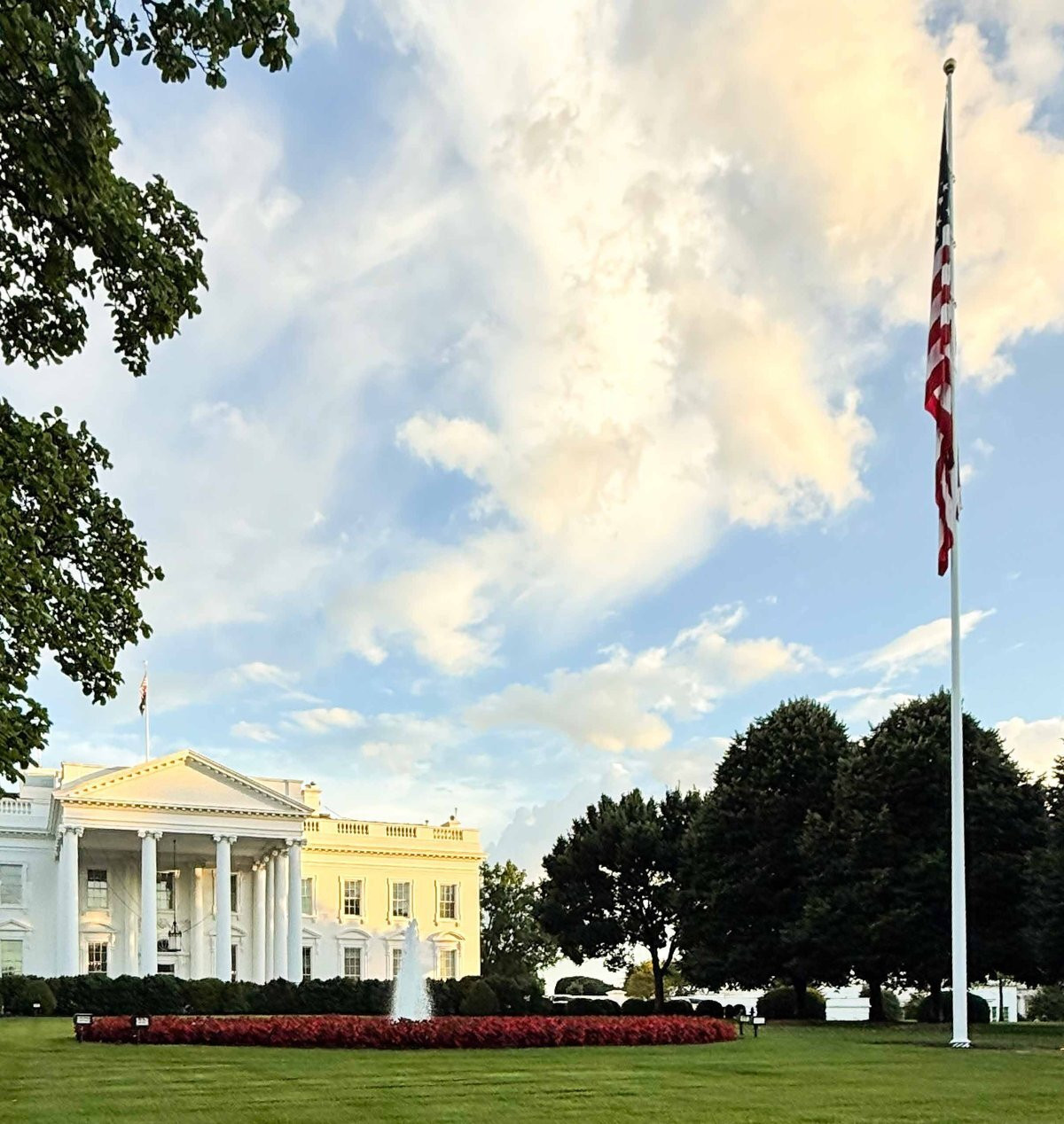

The Presidential Collection from Concord American Flagpole offers the same iconic white powder coat finished flagpole showcased at the White House. With clean lines, classic proportions and a premium white finish, it makes a powerful statement of tradition, honor and American pride, and brings a distinguished, historic look to estates, institutions and landmark properties. Each pole is built on Concord's Independence (IRW) design: a heavy-duty internal winch and stainless steel wire cable halyard behind a flush-mount door with a keyed lock, set in an inset reinforced aluminum door frame welded into the door opening for added strength. The flag cannot be lowered or stolen without the key and the removable crank, and there is no rope to cut or slap against the pole. This 75 ft model has a 12" butt diameter and .375" wall, is rated for winds up to 126 mph with a nylon flag, and flies a 12 ft x 18 ft flag. This is a landmark-scale pole for highway frontage, large dealerships, corporate headquarters and civic sites.
Specifications
| Mounting height | 75 ft |
| Overall length | 82 ft 6 in |
| Butt (base) diameter | 12 in |
| Top diameter | 4 in |
| Wall thickness | .375 in |
| Pole sections | 3 (ships in 3 sections) |
| Set depth | 7 ft 6 in |
| Recommended flag size | 12' x 18' |
| Max wind speed with nylon flag | 126 mph |
| Max wind speed with no flag | 161 mph |
| Finish | White powder coat |
| Halyard system | Internal stainless steel wire cable halyard with winch and removable hand crank, behind a flush-mount locking door in a welded reinforced door frame |
| Approximate shipping weight | 1,025 lb |
| Catalog number | IRW75H23P-WHT |
Wind ratings are from the Concord American catalog for the exposed height above ground.
Choosing the Right 75 ft Model
The IRW75H23P-WHT is the only 75 ft model in the Presidential Collection, built with a 12" butt and .375" wall for a wind rating of 126 mph with a nylon flag.
Compare all Presidential Collection flagpoles »
Standard Components
- Patented heavy-duty gold anodized aluminum ball with heavy-duty 5/8" ball stem
- Heavy-duty cast aluminum internal revolving truck with dual sealed stainless steel bearing assemblies, aluminum spindle, cast brass exit bushing and removable hood
- Complete internal halyard assembly: wire halyard cable assembly, flag arrangement with heavy-duty shock spring assembly, two heavy-duty stainless steel flagsnaps, two neoprene flagsnap covers, patented plastic-coated counterweight and beaded retainer ring assembly
- Stainless steel winch assembly with removable hand crank
- Reinforced aluminum door frame welded into the door opening
- Flush mount access door with lock and keys
- Heavy-duty cast aluminum FC-11 flash collar
- Galvanized 16-gauge corrugated steel ground sleeve with steel grounding spike
Finish
The Presidential Collection comes in a white powder coat finish, the same look as the flagpoles on the White House grounds.
Available Options
- Cast aluminum sealed-bearing gold powder-coated ball and truck (8", 10" or 12" ball) in place of the standard truck and ball
- Shoe base for surface mounting
- Flagpole lighting
Ask us about any of these options when you request your quote.
Frequently Asked Questions
What size flag does this pole fly?
The recommended flag size for the IRW75H23P-WHT is 12' x 18'.
How is it installed?
The pole sets 7 ft 6 in into a concrete foundation using the included galvanized steel ground sleeve, for a total length of 82 ft 6 in. A shoe base for surface mounting is available as an option.
How does it ship?
The IRW75H23P-WHT ships by truck freight in 3 sections, with an approximate shipping weight of 1,025 lb. A $500 freight deposit is charged at checkout and applied to the actual freight cost.
How is the flag raised and lowered?
Open the locking access door, attach the removable hand crank to the stainless steel winch and turn it to raise or lower the flag on the internal wire cable. Remove the crank and lock the door when you are done.
Why choose an internal winch flagpole?
The wire halyard and winch are hidden inside the pole and locked behind the access door, which prevents flag theft and vandalism, protects the halyard from weather and cutting, and stops it from slapping against the pole in the wind. A wire cable cannot be cut as easily as rope, giving round-the-clock security for the flag.
Is there a warranty?
Concord American backs its aluminum flagpole shafts with a lifetime flagpole shaft warranty, subject to Concord American's warranty terms.
Do you install flagpoles?
Yes. Ameritex Flag & Flagpole installs flagpoles in San Antonio and the Texas Hill Country and across Texas. Call 877-598-3524 for an installation quote.
Freight Quote
Prices are subject to change. Freight costs depend on your location, so please email sales@ameritexflags.com with the delivery address and whether it is a commercial, residential or limited-access site, and we'll send you a material and freight quote.
