Product Description
12" Internal Halyard Cast Ball Truck - TRK-9856
The Concord American Flagpole 12" internal cast ball truck combines a revolving internal halyard truck with a 12" ball ornament in one piece. It is made for wire halyard winch flagpoles, fits pole tops up to 4-1/2", and turns with the wind on sealed upper and lower stainless steel ball bearings.
Features
- Cast aluminum construction, GoldTone powder coat standard
- Ball diameter: 12"
- Maximum shaft top diameter: 4-1/2"
- Internal aluminum pulley
- SEALED upper and lower stainless steel ball bearing assemblies
- Cast brass halyard exit bushing reduces wear and extends truck life

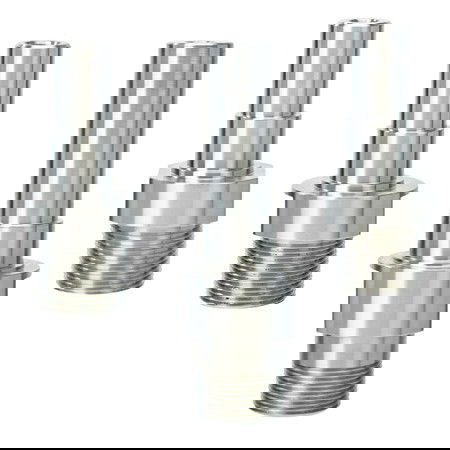

- 1-1/4" NPT spindle standard; 1-1/2" NPT and stainless steel spindles available
- Factory-attached eagles available, including the Extra-Large Flying Eagle: call for size and pricing
Part Numbers
- Satin – Part number: TRK-9856
- GoldTone – Part number: TRK-9856-GDT
- Powder coat – Part number: TRK-9856-***
*** = powder coat color: BZT (BronzeTone), BLK (Black), WHT (White) or CLR (Clear). Powder coated trucks may take longer to ship.
How to measure: check the outside diameter of your pole top and the thread size of the fitting in the top of the pole. Not sure what you need? Call 877-598-3524 or email sales@ameritexflags.com. See all internal halyard truck assemblies.
