Concord American Titan Flag Pole Series – Flush Mount Hinged Door Design - IWW
Internal With Winch – Wire Halyard

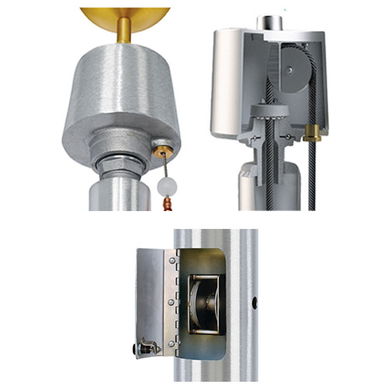

The Titan Series from Concord American Flagpole offers commercial grade flagpoles with the security of an Internal Halyard Winch and Wire Cable system. Ranging in heights from 20′ to 80′, the concealed halyard and lockable flush mount hinged door delivers project owners the peace of mind provided with 24-7 security.
Lifetime Warranty
Concord American Flagpole warrants its aluminum flagpole shafts for their LIFETIME.
SPECIAL NOTE: Due to economic constraints, the prices listed here are subject to change. We ask that you email us at sales@ameritexflags.com for material and freight costs to your location. Please include the delivery address for the flagpole in your request. Please indicate if the shipping address is a commercial, residential or limited access facility.
Standard Components

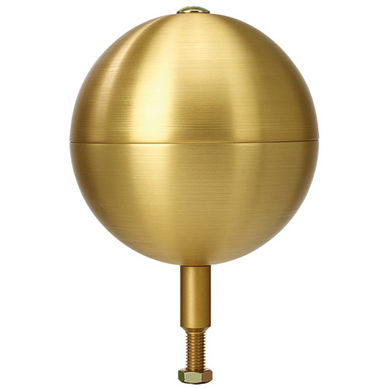

• Patented, Heavy-Duty Gold Anodized Aluminum Ball

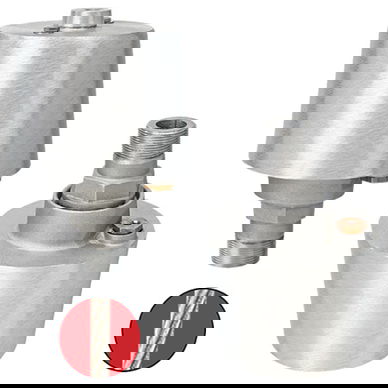

• Cast Aluminum Revolving Truck with Dual SEALED Stainless Steel Bearing Assemblies, Aluminum Spindle, Cast Brass Exit Bushing and Removable Hood
• Complete Internal Halyard Assembly

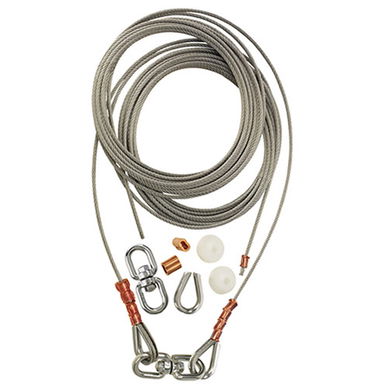

– Wire Halyard Cable Assembly
– Flag Arrangement (8′ x 12′ and Larger Flags Include Heavy-Duty Shock Spring Assembly)
– Two (2) Stainless Steel Swivel Flagsnaps
– Two (2) Neoprene Flagsnap Covers
– Patented, Plastic Coated Counterweight
– Beaded Retainer Ring Assembly

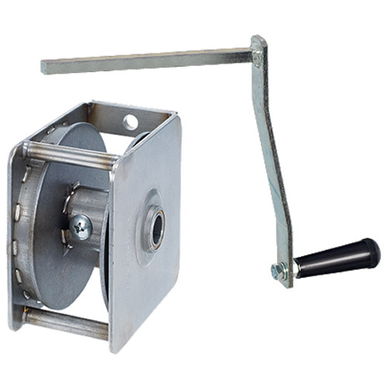

• Stainless Steel Winch Assembly with Removable Hand Crank
• Flush Mount Access Door with Lock and Keys
• Spun Aluminum FC-11 Flash Collar
• Galvanized 16-Gauge Corrugated Steel Ground Sleeve with Steel Grounding Spike
----------------------------------------------------------------------------------------------
Standard Upgrades – 10″ and 12″ Butt Diameters
• Heavy-Duty, Large Cast Aluminum Revolving Truck with Dual SEALED Stainless Steel Bearing Assemblies, Aluminum Spindle, Cast Brass Exit Bushing and Removable Hood
• Two (2) Heavy-Duty Stainless Steel Flagsnaps
• Heavy-Duty Cast Aluminum FC-11 Flash Collar
• Heavy-Duty 5/8″ Ball Stem
